2018 new auto 5kg to 50kg rice agro application packing machine

Proprietà di base
Luogo di origine: Changsha, Cina
Marchio: Purple Horn
Certificazione: CE ISO
Numero di modello: DCS-50L
Proprietà Commerciali
Quantità minima di ordine: 1 insieme/insieme
Prezzo: $5,000.00 - $10,000.00 / Set
Capacità di fornitura: 100 insieme/insiemi per Macchina imballatrice di agro applicazione del riso di mese
Riepilogo Prodotto
Product Description1, Product Name: 2018 new auto 5kg to 50kg rice agro application packing machine2, Item: DCS-50L Application materials small size granular or powder with good flow Display Resolution 5g, 10g Weighing Range 5-50kg/bag or customized needs Precisions +/-(0.1-0.2)% FS Packing Capacity ...

Dettagli del prodotto

Application: granulare di piccola dimensione o polvere con buoni flusso, prodotto chimico, merce, alimento, macch
Packaging Type: borse aperte della bocca, borse
Dimension(L*W*H): 3000*1100*3200mm
Product Name: 2017 nuovi 5kg automatici alla macchina imballatrice di agro applicazione del riso 50kg
Three Load Cell: alta accuratezza di pesatura
Three Travelling Cylinder: velocità di alimentazione con rapido midium lento
Control Box: pannello pieno del touch screen
Automatic Bag Clamp: Controllo di sensore
PLC System: Funzionamento facile
Packing Material: polvere granulare o buona di flusso
Sewing Machine: Automatico pieno
OEM Service: 15 anni di esperienza di R & S
Quality Warranty: un anno
Weight: 1500KG
After-Sales Service Provided: Costruisce disponibile per assistere il macchinario oltremare
Power: 3KW
Condition: Nuovo
Packaging Material: Legno, macchina imballatrice di agro applicazione del riso in caso di legno
Driven Type: Pneumatico
Voltage: 220V/380V/50HZ
Automatic Grade: semiautomatico
Type: Altro
Port: Shanghai o qualsiasi porto in Cina
Descrizione del prodotto
Product Description

1, Product Name: 2018 new auto 5kg to 50kg rice agro application packing machine

2, Item: DCS-50L

Application materials
small size granular or powder with good flow
Display Resolution
5g, 10g
Weighing Range
5-50kg/bag or customized needs
Precisions
+/-(0.1-0.2)% FS
Packing Capacity
360-480 bags/hour
Dimention(L*W*Hmm)
3000*1100*3200mm, the size can be customized according to your site
Power Supply
AC220V/380V, 50HZ, 1P/3P, customized available
Air Source
0.5-0.7 Mpa
Power
3KW
Working Temperature
-10~40 ℃
Relative Humidity
≤90% RH(Non-condesing)
Application
2018 new auto 5kg to 50kg rice agro application packing machine 0
2018 new auto 5kg to 50kg rice agro application packing machine 1

Application Materials(products)

Gravity feeding type packing machine suit for pack  small size granular or powder with good flow, such  as plastic particles, feed, fertilizer( urea etc), grain,  sugar, bean, rice etc.

Application Bags(open mouth bags)

This bagging machine is especially designed for      pack materials(products) into open mouth bags,      such as plastic woven bags, kraft bags,paper-plastic compound bags, sacks, barrel etc

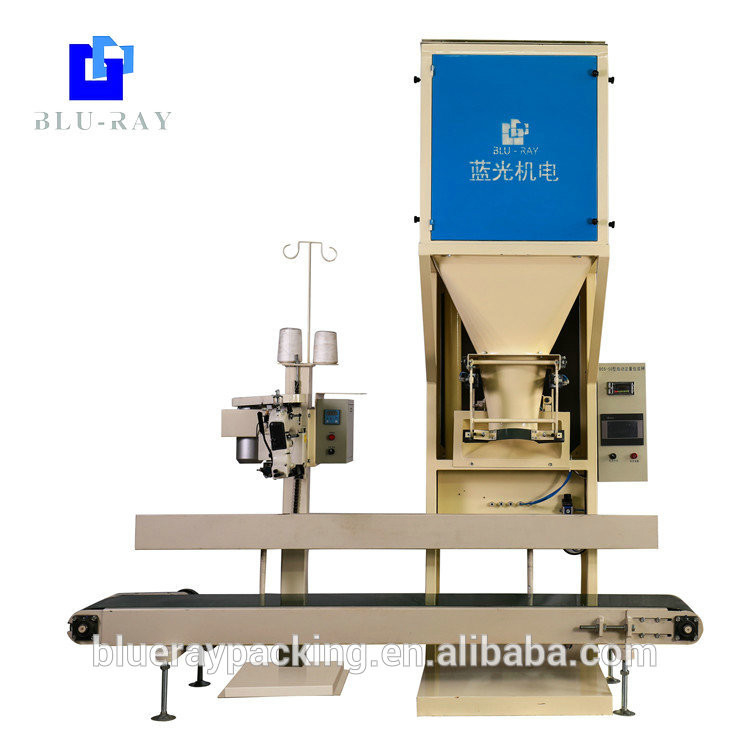

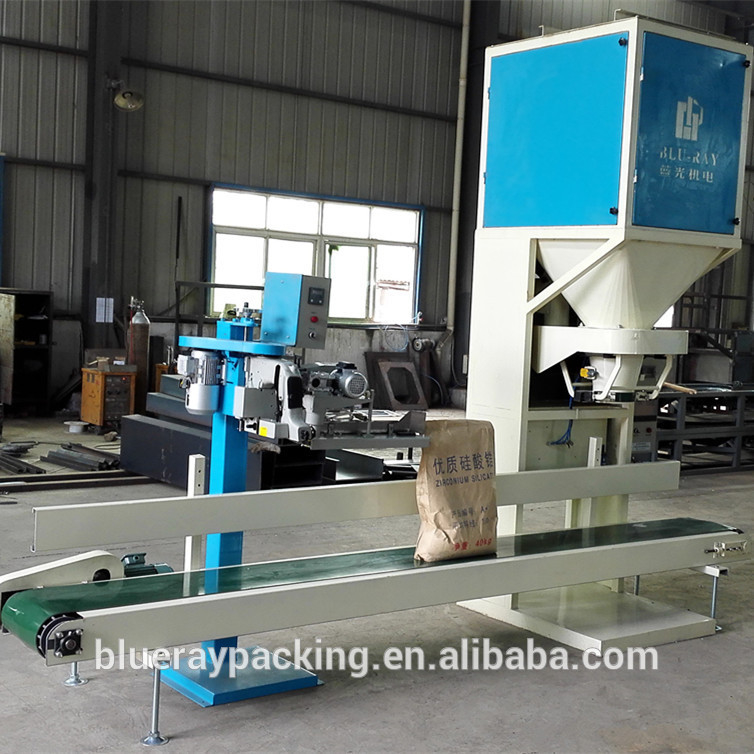

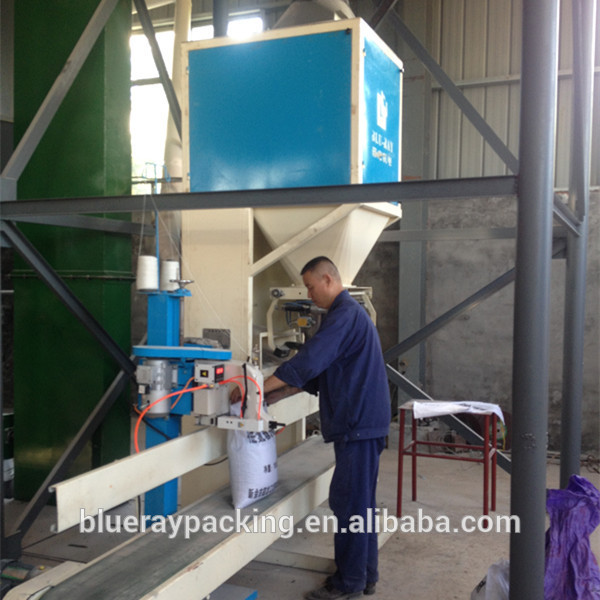

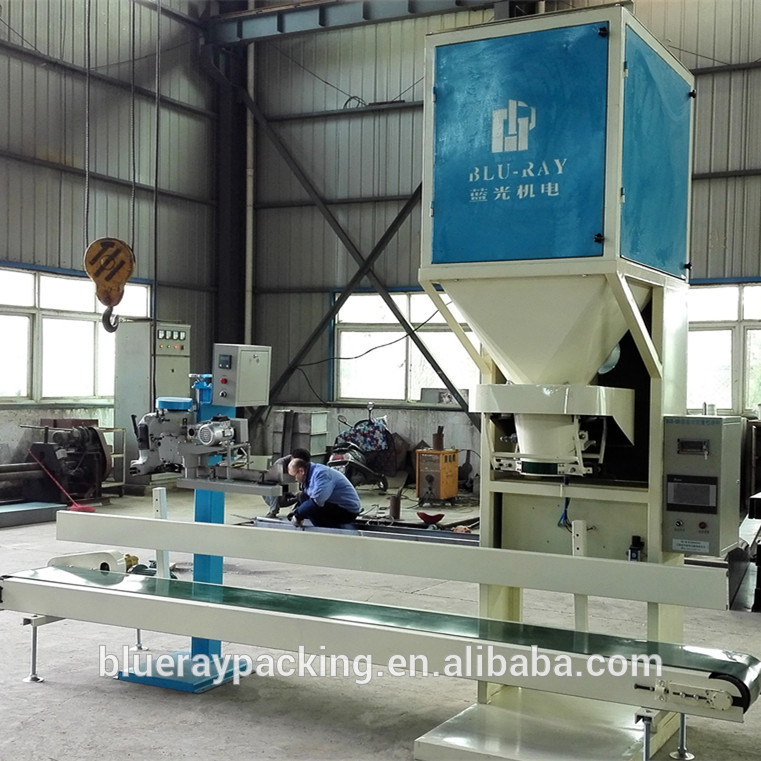

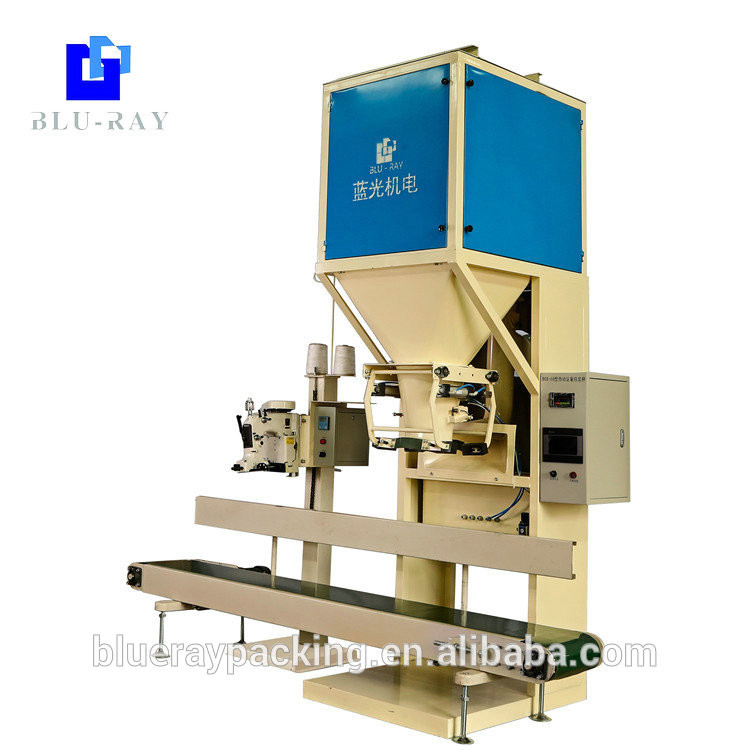

Detailed Images
2018 new auto 5kg to 50kg rice agro application packing machine 2
2018 new auto 5kg to 50kg rice agro application packing machine 3
Working Process
2018 new auto 5kg to 50kg rice agro application packing machine 4

Automatic filling - automatic weighing - manually bag placing - automatic bag clamped - materials automatic discharge - automatic bag loose - automatic conveying - automatic bag closed by sewing/heat sealing

Advantage
2018 new auto 5kg to 50kg rice agro application packing machine 5

Control Box

+Full touch screen panel

+PLC system

+Photoelectric sensor switch

+English/Chinese view

+Easy operation interface

+Proction data record & print

+Connect computer available



Three pieces of Load Cell

(weighing sensor)

+Famous brand load cell, more stable

+Installed 3pieces load cell, high weighing accuracy




2018 new auto 5kg to 50kg rice agro application packing machine 6
2018 new auto 5kg to 50kg rice agro application packing machine 7




Three-travelling Air Cylinder

+Control by the PLC system and three-travelling

air cylinder, feeding speed with fast-midium-slow



Automtic Bag Clamp/Loose Mechanism

+Photoelectric sensor switch

+Big force 2pcs air cylinder control

+Automatic bag clamp and loose

+Automatic materials dischage

+Suit for different bag size

2018 new auto 5kg to 50kg rice agro application packing machine 8
2018 new auto 5kg to 50kg rice agro application packing machine 9


Dust Air Outlet

+All of our packing machine will install air outlet

+Connect your dust removal device, making the

working environment more hygienic

+Add our pulse dust collector,

dust collection≥99.8%

Automatic Sewing Machine

+Automatic bag top folding device(opitional)

+Photoelectric sensor switch

+Automatic knife thread cut

+Single needle double thread chain

+Production data record & print

+Thread end length ajustable

+Bag sewing heigth adjustable

+With automatic bag conveyor

2018 new auto 5kg to 50kg rice agro application packing machine 10
